Annotating IIIF Video — A Mirador Annotation Editor Video Hands-on
A hands-on guide to Mirador Annotation Editor Video for IIIF video annotation
miradoriiifannotationvideodigital-archives
Full script
A transcript of the video's dialogue. Read it here when you can't play the audio.
Introduction
- MAEV: Mirador Annotation Editor Video
- Adds video annotation to Mirador 4
- Spatial + temporal targets in one annotation
- Metan
- What is Mirador Annotation Editor Video?
- Zundamon
- It is a plugin for Mirador 4 that adds annotation creation for video. It extends the image-oriented Mirador Annotation Editor.
- Metan
- What makes video annotation different from image annotation?
- Zundamon
- With images you annotate a region of the frame, a spatial target. With video you can also specify a time range, called a temporal target.
- Metan
- So a single annotation can cover both a place and a time window?
- Zundamon
- Exactly. One annotation can carry both a spatial shape and a start-to-end time range simultaneously.

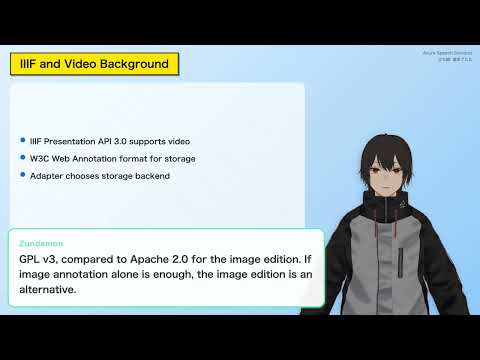

IIIF and Video Background
- IIIF Presentation API 3.0 supports video
- W3C Web Annotation format for storage
- Adapter chooses storage backend
- Metan
- Does IIIF support video content?
- Zundamon
- Yes. IIIF Presentation API 3.0 can handle video and audio within the same manifest structure used for images.
- Metan
- And annotations are saved in what format?
- Zundamon
- IIIF and W3C Web Annotation format. You can choose the storage backend through an adapter — local storage, your own server, and others.
- Metan
- What is the license for MAEV?
- Zundamon
- GPL v3, compared to Apache 2.0 for the image edition. If image annotation alone is enough, the image edition is an alternative.
Using the Official Demo
- Demo at tetras-iiif.github.io/maev
- Clock video with 9 sample annotations
- Annotations appear at matching playback time
- Metan
- Where can I try MAEV without installing anything?
- Zundamon
- There is an official demo at tetras-iiif.github.io/mirador-annotation-editor-video with a clock video and nine sample annotations.
- Metan
- What happens when I play the video?
- Zundamon
- Annotations matching the current playback position appear in the panel. Each annotation only shows during its time window.
- Metan
- Can I filter the annotations?
- Zundamon
- Yes. You can filter by text string or by tag, and export visible annotations from the panel.
Creating an Annotation
- Three templates: Note / Tag / Expert
- Draw spatial target with shape tools
- Set current time captures playback position
- Metan
- How do I create a new annotation?
- Zundamon
- Press Create annotation. A panel opens with three templates: Note, Tag, and Expert mode. Choose Note for a standard text annotation.
- Metan
- How do I set the spatial target?
- Zundamon
- Use the shape tools under Target to draw a rectangle or circle on the video frame. You can also adjust color and line weight from the Style section.
- Metan
- And for the time range?
- Zundamon
- Scroll to the Time section. Play the video to the start scene, press Set current time for Start, then do the same for End.
Summary
- Press Save to store the annotation
- npm install mirador-annotation-editor-video to embed
- Standard IIIF annotation format throughout
- Metan
- How do I finish and save the annotation?
- Zundamon
- Enter body text in the Quill editor, optionally add tags, then press Save. The annotation appears in the panel list.
- Metan
- How do I embed MAEV in my own site?
- Zundamon
- Install the npm package mirador-annotation-editor-video, then pass miradorAnnotationEditorVideoPlugins to the Mirador viewer config.
- Metan
- What is the key takeaway?
- Zundamon
- MAEV combines spatial shapes and temporal time ranges into single IIIF annotations. The Time section is the only new concept beyond the image edition.
